TLD landmarks are available for every country, excluding Japan, South Korea and North Korea (countries without 2G GSM network).
Landmarks that are used for tracking purposes always include plenty of intelligence in a way how local landmarks are selected. TLD does not include all landmarks, only meaningful landmarks with local significance for tracking usage. This guarantees best possible user friendliness and functionality together with T22 features.
Due to the dynamic and chancing nature of landmarks, Tramigo is committed to continuous updates of its data to ensure the best possible quality of every TLD. Landmarks for every country are updated and verified several times every year.
You can add your own landmarks into TLD by using the "AddPlace" feature (See T22 Manual).
T22 can store up to 20 SMS messages and will send at the first opportunity once GSM signal has been retrieved. Incoming SMS to your T22 are stored by the GSM operator.
Use the LB (LowBalance) command if your credit reports are via SMS. T22 will forward to you an SMS message from the mobile number you have specified in the LB command.
T22 will only store one user location with the same name, so if you add another landmark (using the AddPlace command) with the same name, the first landmark is deleted.
No. The unit will stop the timer and will resume when the unit wakes up.
M1 Move is a software for your smart phone that provides menus for using your T22 and can display the locations on your mobile.
M1 Fleet is a software for PC that provides simple fleet management and location displays on a map.
Send the command Coord,on>Coord,dec to your T22 and send a Find command again. Successive reports will now be shown on the map.
There is no limit set to the number of vehicles you can add, however you should limit the number of incoming SMS as the modem can only handle between 10-20 concurrent SMS before it will bog down. If setting automatic find reports, then space them out to reduce load on the modem. Also use the distance find to reduce the load when Tramigo's are not moving.
Phones are not suitable as an SMS modem because they are hard to keep running over long periods of time. Phone chargers are not designed to be plugged in for weeks.
1. Turn on periodic find, either time or distance.
2. Turn on trip reporting.
3. Gather trip and location reports.
4. Double click on a Trip report to see the trail on the map.
Possible causes: No or slow Internet connection. Web based maps site blocked by administrator (firewall) - try searching for a new online map. Coordinates not in report - re-register T22 to turn on coordinates.
Just re-add the Tramigo and your old reports will still be listed.
M1 will only add a report if the phone numbers match. Check that the phone number in the Tramigo Settings tab matches the phone number of the incoming SMS. It could also be SPAM SMS that the system received. To see the raw SMS in the database see the section in the User Manual on Exporting Data.
Just open "Live Tracking" and set "Periodic Find", "Trip Start" and "Trip" in Control Center tab.

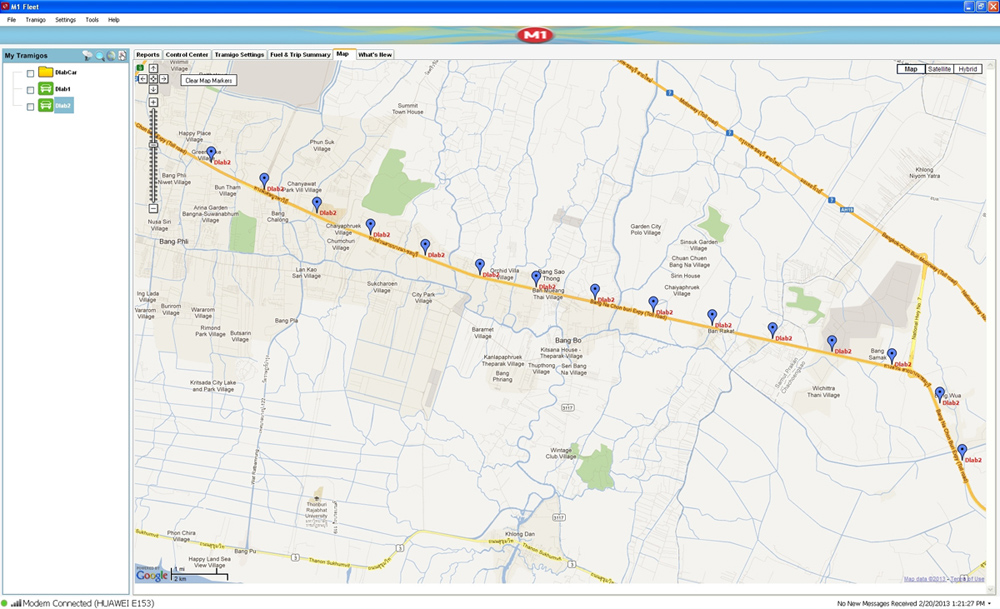

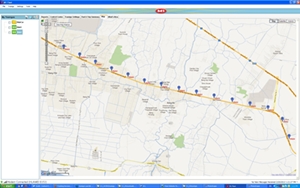

1. It plot in map automatically on map by base on SMS that
it sent back.
2. If we set "Periodic Find > Distance(km/mi) or Time" such as 2 km/mi . It
will frequency plot on map automatically.

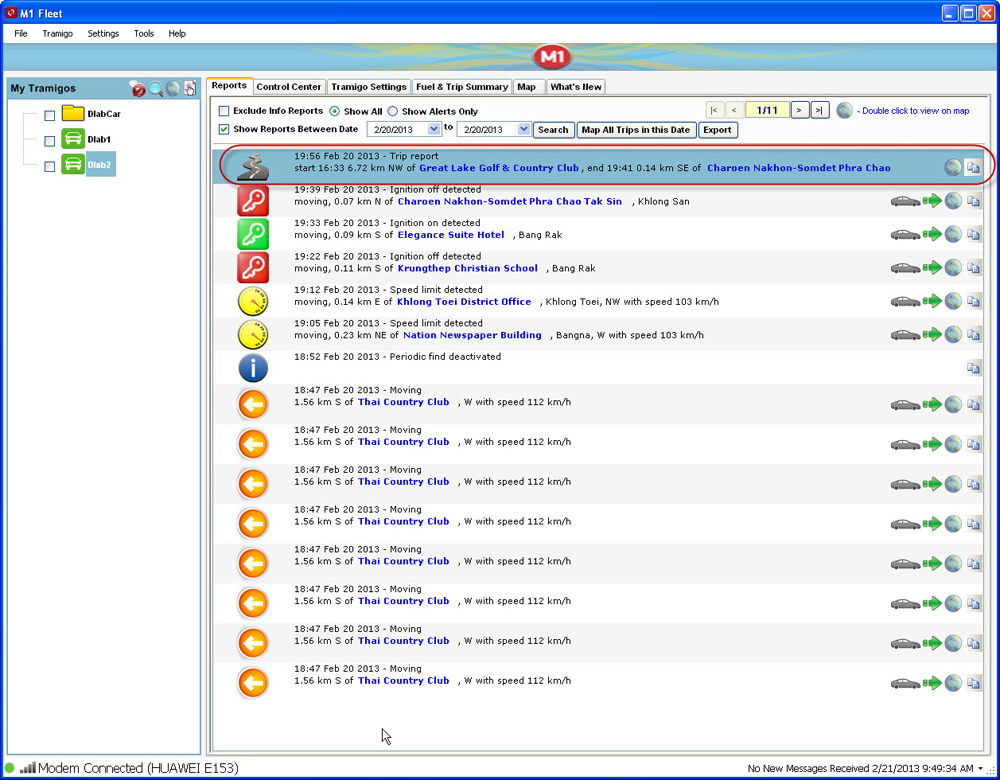

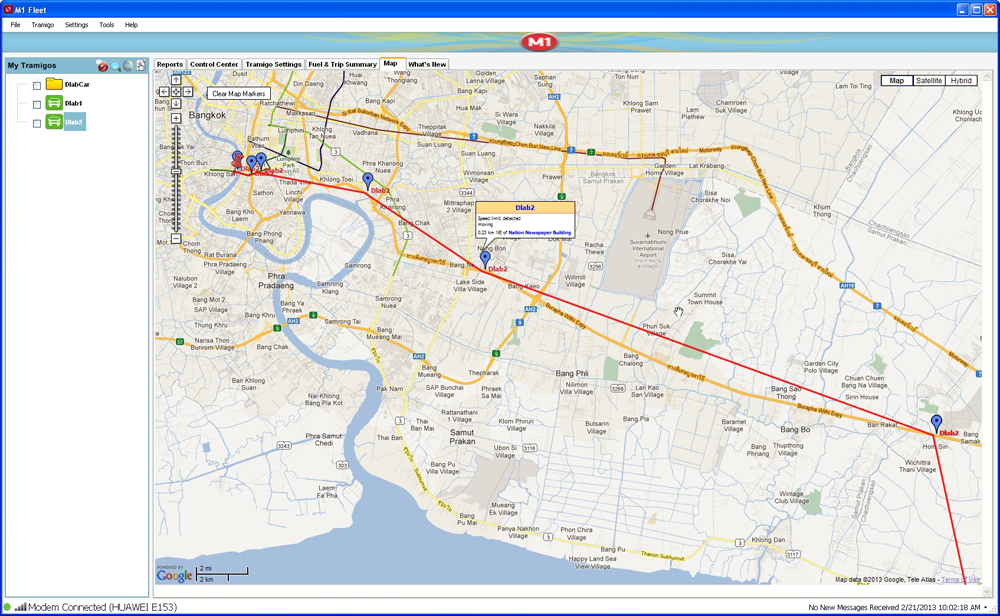

3. We also can double click at "Trip Report" on "Reports" tab. It will show
the red line on map. It tracked by based on SMS, too.
1. Send LU,ALL to determine which user slot was allocated to the number.
2. After knowing which user slot you want to disable automatic sending,
send R,<user slot>,FIND,OFF
Example: R,2,FIND,OFF
This will disable the automatic sending to the user allocated to the slot.
Can check setting by send 'STATUS' command from car that you would like to check and it will send status report into Reports tab.
Ex. Send command 'STATUS' to Car1.
It will send report back by the following:-
Car1: Status, GPS: 41%, GSM: 58%, battery: 39%,
reports: Find (5,1.0, - ), Ignition (off), Power, Trip, Speed (80),
Zone, 13.71848, 100.50972, 11:35 Mar 14
You can see your setting after ' report: '.
-Find (5,1.0,-) = Periodic Find report is activated. It will send sms every
5 minutes and every 1.0 km.
-Ignition(off) = Ignition report is activated.
-Power = Power report is activated.
-Trip = Trip start is activated.
-Speed(80) = Speed limited is activated with speed limit 80 km/h.
-Zone = Zone is activated.
-13.71848, 100.50972 = Coordinate
Note: If you didn't set any setting in Tramigo. When you send 'STATUS' command.
It will send ' reports : none ' in report tab by the following:-
Car1: Status, GPS: 87%, GSM: 87%, battery: 81% (charging),
reports: none, 14.06527, 100.63164, 14:00 Mar 14
